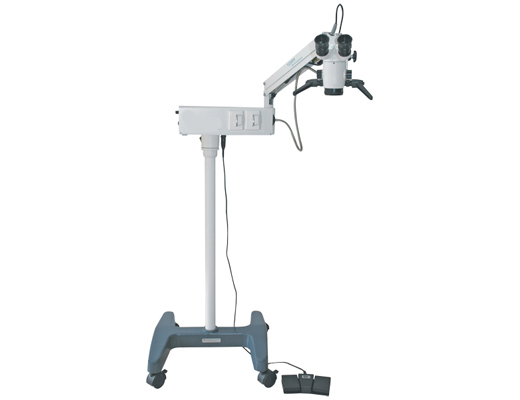

ENT microscope:
The product is a simple coaxial illumination operation microscope for one man.It is portable,compact and applied in mobile hospital.
|
Eyepiece Magnification |
12.5× |
|
Objective Lens |
f=200 |
|
Working Distance |
190mm |
|
Magnifications for Main Microscope |
5.3×, 8×, 12× |
|
Diameter of Field |
F37mm、F25mm、F16.7mm |
|
Diopter Adjustment |
±7D |
|
Pupil Distance |
50mm～80mm |
|
Maximal Resolution |
100LP/mm |
|
Illumination Source |
12V/100W, medical cold reflection halogen lamp |
|
Illumination Type |
6°+0°Coaxial cold light source illumination |
|
Coaxial Illumination |
≥30000lx |
|
Reaching Radius of Arm |
870mm |
|
Adjustable Vertical Range |
700mm～1100mm |
|
Fine Focusing Range |
30mm |
|
Input Voltage |
AC220V±22 V / 50Hz±1Hz, AC110V±11V /60Hz±1Hz |
|
Power |
120VA |
|
Fuse |
AC250V T1.25A, AC125V T2.5A |
|
Electrical Safety Standard |
Executive Standard: GB9706.1-2007, type I |
|
Packing Volume |
0.2m3, 1carton |
|
Total Weight |
41kg |
